The original name in Italian is Ribaltatore per i rocchetti.
Other names: tilter for coil, tilter for bobbin.

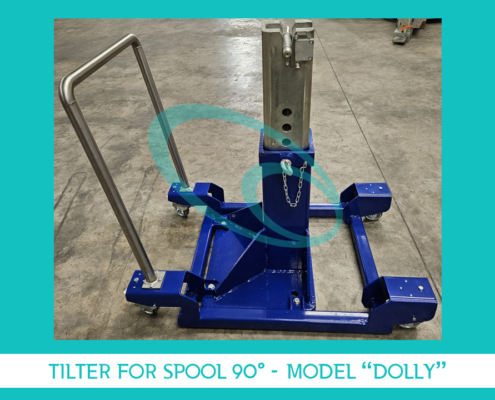

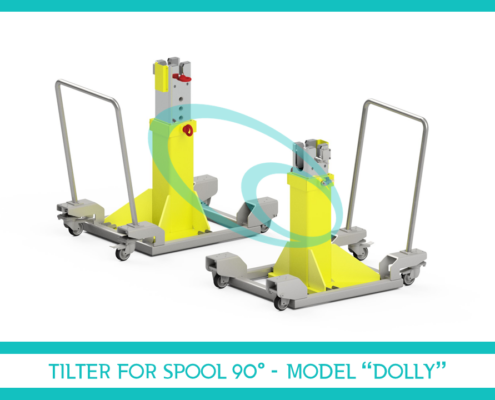

Elevate your manufacturing process with the unparalleled precision and efficiency of Tecnica 80’s Tilter for Spool. This cutting-edge equipment is specifically designed to enhance your workflow by seamlessly tilting spools containing copper strips, optimizing accessibility and efficiency in your operations. Watch the video on YouTube.
Important notice: The equipment which is demonstrated on the images were built in 2021 for Load Maximum of 5 Tons and built in 2025 Load Maximum of 6.5 Tons. We are kindly reminding that our company is specializing on personalized equipment based on the customers requests. Thus, none of the dimensions are fixed, they could be based on clients requirements.
Nickname of the equipment is “Dolly” because of physical resemblance with Dolly Carts.

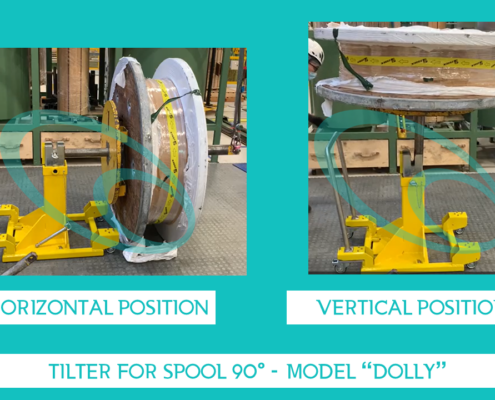

Description: This machine was designed and manufactured specifically for tipping spools containing copper strips, i.e., for turning the spool axis from a horizontal to a vertical position.
The “Dolly” was designed and manufactured to tilt spools of copper strips from a horizontal to a vertical position. It may only be used within the limits defined in the purchase order specifications, i.e., within the data specified on the CE plate and in the manual of use. Any other use of the “Dolly”is prohibited.
The “Dolly” was designed and manufactured to operate in enclosed work environments and is suitable for use in environments that are:
The “Dolly” is prohibited from use in environments that are:

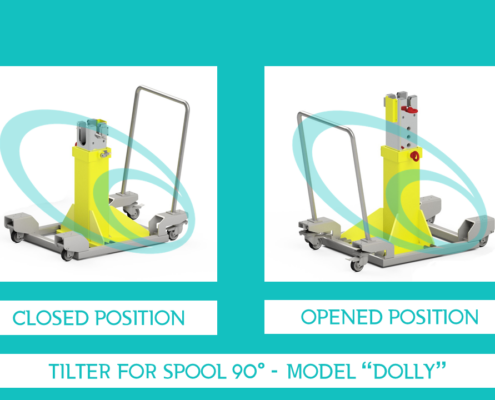

As an example, the Model 5T of 2021, the mobile element can be positioned at 4 different heights:
– Pos. 1 H from the ground 685mm
– Pos. 2 H from the ground 7355mm
– Pos. 3 H from the ground 785mm
– Pos. 4 H from the ground 835mm
To change the working height, release the automatic lock of the base-mobile element connection pin and remove the pin from its housing. The mobile element will rise gently. Now press on the top of the mobile element until the desired height is reached, align the pin holes, and reinsert the pin. CAUTION: The pin must be fully inserted; check that the automatic locking system has actually engaged the pin.
The equipment is responding to the normative of Directive 2006/42/CE (EU OSHA);
Any other certifications of conformity could be discussed during negotiations;
The equipment can be constructed based on the customers requested dimensions;
The equipment can have any RAL color based on the customers requirements;
Manual of Use: both in English language and requested additional language;
Warranty: for EU 🇪🇺 countries is 24 months, for others 🌍12 months;
Delivery: Depends on busyness of the factory, normally around 180 working days after PO;
Payment terms: preferred is 50% bank transfer against P.O. + 50% bank transfer at delivery time EXW;
Factory Acceptance Test (if necessary) – in-person or video-call;
Power Requirements: Standard 🌍– 380V/3 phase/50Hz. For USA 🇺🇸 – 480V/3 phase/60Hz;
Temperature & Humidity: 10°C-40°C (50°F-100°F) and 20-80% RH;
Corrosion Protection: Coated or corrosion-resistant material;
Control System: Remotely with push-button panel.
